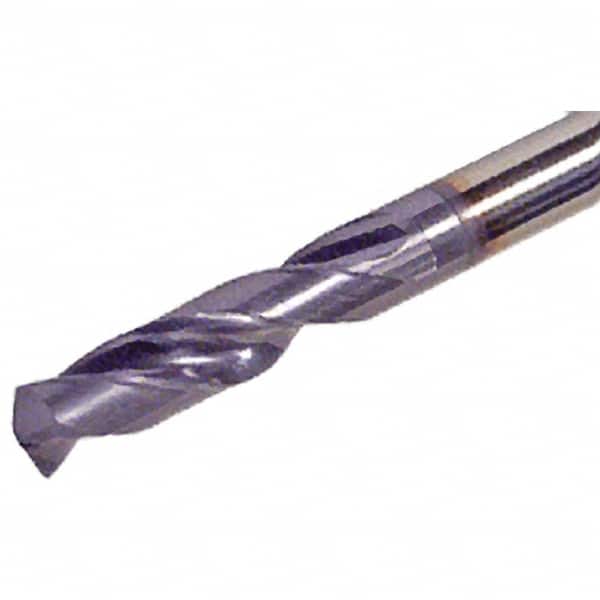

Screw Machine Length Drill Bit: 140 °, Solid Carbide Coated, Right Hand Cut, Spiral Flute, Straight-Cylindrical Shank, Series SCD-AP3
Item #: 91156406
Brand: Iscar
Model #: 5530464
Product Specifications
| Drill Bit Size (mm) | 17.80 |
| Tool Material | Solid Carbide |
| Cutting Direction | Right Hand |
| Coating/Finish | Coated |
| Drill Point Angle | 140 |
| Spiral Type | Regular |
| Flute Type | Spiral |
| Point Type | Standard |
| Coolant Through | No |
| Shank Type | Straight-Cylindrical |
| Number Of Flutes | 2 |
| Shank Diameter (Decimal Inch) | 0.7087 |
| Overall Length (mm) | 123.00 |
| Overall Length (Decimal Inch) | 4.8425 |
| Shank Diameter (mm) | 18.00 |
| Series | SCD-AP3 |
| Web Configuration | Tapered |
| Drill Length Type | Screw Machine |
| Maximum Drilling Depth (mm) | 51.00 |
| Shank Length (Decimal Inch) | 1.8898 |
| Shank Length (mm) | 48.00 |
| Drill Point Length (mm) | 3.24 |
| Flute By Diameter Ratio | 3xD |
| Drill Bit Diameter Tolerance | 0.007 to 0.025 mm |
| Standards | DIN 6537 |
| Flute Length (mm) | 73.00 |
| Drill Bit Size Range (mm) | 17.00+ |
| Specification Number | DIN 6537 |
| Specification Designation | DIN |
| Material Grade | Submicron |
