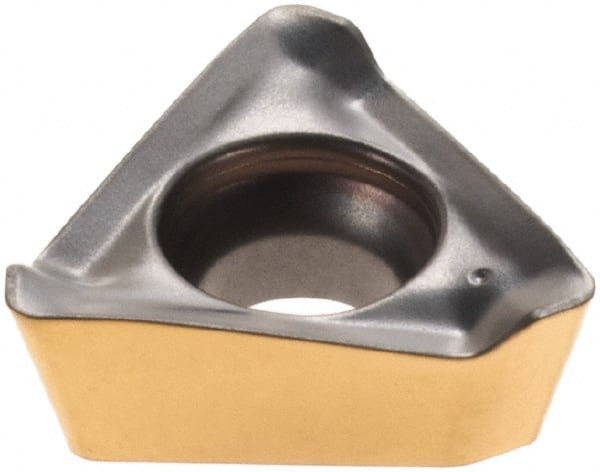

Iscar - HM390 TPKT1003 Grade IC330 Carbide Milling Insert - TiCN/TiN Finish, 0.1516" Thick, 7.5mm Inscribed Circle, 0.8mm Corner Radius
Item #: 91160861
Brand: Iscar
Model #: 5607742
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | HM390 TPKT |
| Insert Size | 1003 |
| Material | Carbide |
| Manufacturer's Grade | IC330 |
| Coating | TiCN/TiN |
| Length (Decimal Inch) | 0.4290 |
| Inscribed Circle (mm) | 7.50 |
| Inscribed Circle (Decimal Inch) | 0.2953 |
| Thickness (Decimal Inch) | 0.1516 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.80 |
| Relief Angle | 11.000 |
| Coating Process | PVD |
| Included Angle | 60 |
| Shape | Triangle |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (mm) | 8.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.3150 |
| ISO Number | HM390 TPKT 1003PDR |
