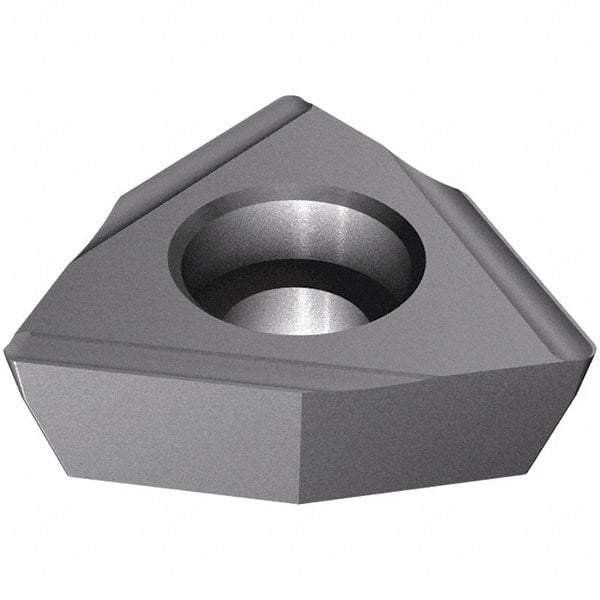

Iscar - WPEX060400 Grade IC908 Carbide Turning Insert - TiAlN Finish, 80° Trigon, 3/8" Inscr Circle, 4mm Thick, 0" Corner Radius
Item #: 91161950
Brand: Iscar
Model #: 5505992
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | WPEX |
| Insert Size | 060400 |
| Material | Carbide |
| Length (mm) | 6.00 |
| Length (Decimal Inch) | 0.2362 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Decimal Inch) | 0.1575 |
| Thickness (mm) | 4.00 |
| Corner Radius (Decimal Inch) | 0.0000 |
| Manufacturer's Grade | IC908 |
| Coating | TiAlN |
| Hole Diameter (mm) | 3.70 |
| Hole Diameter (Decimal Inch) | 0.1457 |
| Rake | Positive |
| Relief Angle | 8 |
| Coating Process | PVD |
| Included Angle | 80 |
| Cutting Direction | Left Hand |
| Series | Isoturn |
| Maximum Depth of Cut (mm) | 3.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1180 |
| Insert Holding Method | Screw |
| Shape | Trigon |
