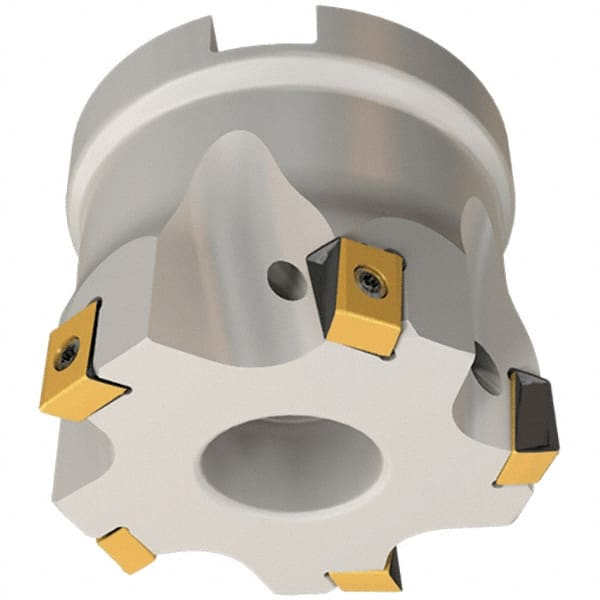

Iscar - 10 Inserts, 50mm Cut Diam, 22mm Arbor Diam, 8mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0/90° Lead Angle, 40mm High, T490 LN.T 0804 Insert Compatibility, Series Helitang
Item #: 91165217
Brand: Iscar
Model #: 3197148
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 50.00 |
| Arbor Hole Diameter (mm) | 22.00 |
| Lead Angle | 0/90 |
| Overall Height (mm) | 40.00 |
| Insert Compatibility | T490 LN.T 0804 |
| Series | Helitang |
| Through Coolant | No |
| Maximum Depth of Cut (mm) | 8.00 |
| Number of Cutter Inserts | 10 |
| Insert Holding Method | Screw |
| Cutter Style | T490 FLN-08 |
| Number of Flutes | 10 |
| Keyway Width (mm) | 10.40 |
| Cutting Edge Length (Decimal Inch) | 0.3150 |
| Minimum Insert Radius (Decimal Inch) | 0.0160 |
| Counterbore Diameter (Decimal Inch) | 0.7090 |
| Complete Insert Compatibility | T490 LNMT/LNHT 0804 |
