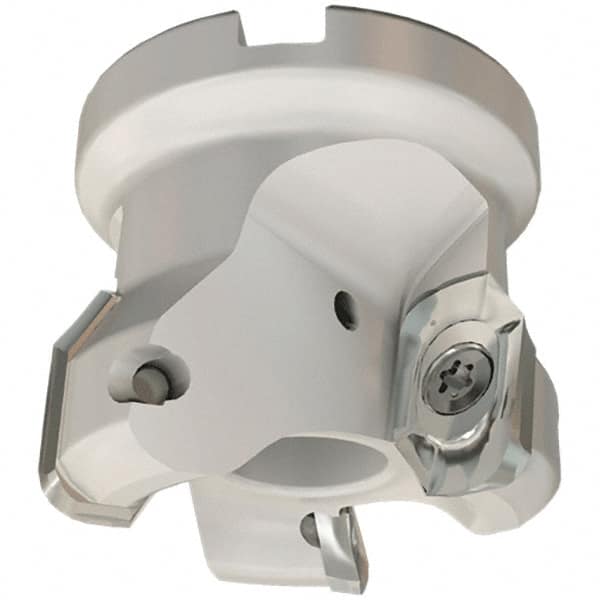

Iscar - 3 Inserts, 2" Cut Diam, 3/4" Arbor Diam, 0.61" Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0/90° Lead Angle, 1-3/4" High, HM90 APCR 1605 Insert Compatibility, Through Coolant, Series Helialu
Item #: 91165266
Brand: Iscar
Model #: 3195282
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 2.0000 |
| Arbor Hole Diameter (Decimal Inch) | 0.7500 |
| Lead Angle | 0/90 |
| Overall Height (Decimal Inch) | 1.7500 |
| Insert Compatibility | HM90 APCR 1605 |
| Series | Helialu |
| Through Coolant | Yes |
| Maximum Depth of Cut (Decimal Inch) | 0.6100 |
| Number of Cutter Inserts | 3 |
| Insert Holding Method | Screw |
| Cutter Style | HM90 FAL-16BR |
| Number of Flutes | 3 |
| Maximum RPM | 29000 |
| Cutting Edge Length (Decimal Inch) | 0.6100 |
| Minimum Insert Radius (Decimal Inch) | 0.1970 |
| Complete Insert Compatibility | HM90 APCR 1605..R-P |
