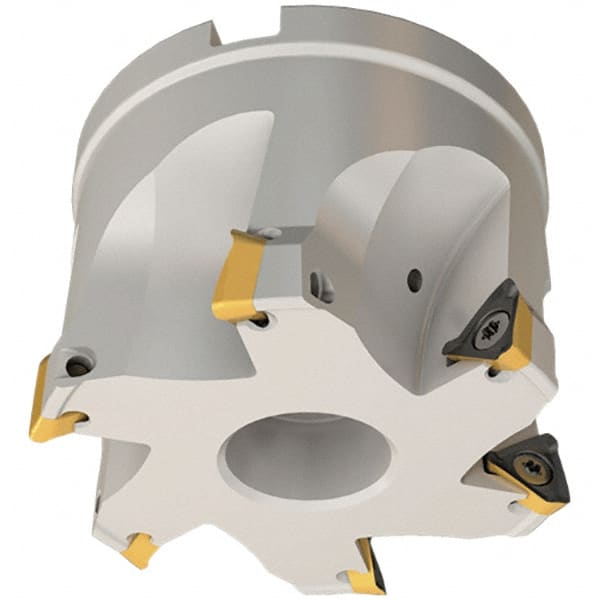

Iscar - 4 Inserts, 50mm Cut Diam, 22mm Arbor Diam, 8mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0/90° Lead Angle, 40mm High, HM390 TPKT 1003 Insert Compatibility, Through Coolant, Series HeliIQMill
Item #: 91165498
Brand: Iscar
Model #: 3106424
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 50.00 |
| Arbor Hole Diameter (mm) | 22.00 |
| Lead Angle | 0/90 |
| Overall Height (mm) | 40.00 |
| Insert Compatibility | HM390 TPKT 1003 |
| Series | HeliIQMill |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 8.00 |
| Number of Cutter Inserts | 4 |
| Insert Holding Method | Screw |
| Cutter Style | HM390 FTP-10 |
| Number of Flutes | 4 |
| Hub Diameter (mm) | 48.00 |
| Keyway Width (mm) | 10.40 |
| Counterbore Diameter (Decimal Inch) | 0.7090 |
| Complete Insert Compatibility | HM390 TPKT 1003 |
