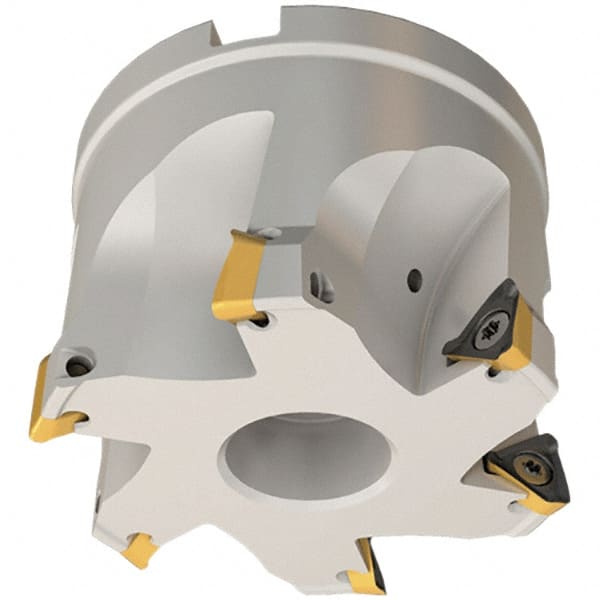

Iscar - 5 Inserts, 40mm Cut Diam, 16mm Arbor Diam, 8mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0/90° Lead Angle, 35mm High, HM390 TPKT 1003 Insert Compatibility, Through Coolant, Series HeliIQMill
Item #: 91165506
Brand: Iscar
Model #: 3106423
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 40.00 |
| Arbor Hole Diameter (mm) | 16.00 |
| Lead Angle | 0/90 |
| Overall Height (mm) | 35.00 |
| Insert Compatibility | HM390 TPKT 1003 |
| Series | HeliIQMill |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 8.00 |
| Number of Cutter Inserts | 5 |
| Insert Holding Method | Screw |
| Cutter Style | HM390 FTP-10 |
| Number of Flutes | 5 |
| Hub Diameter (mm) | 38.40 |
| Keyway Width (mm) | 8.40 |
| Counterbore Diameter (Decimal Inch) | 0.5510 |
| Complete Insert Compatibility | HM390 TPKT 1003 |
