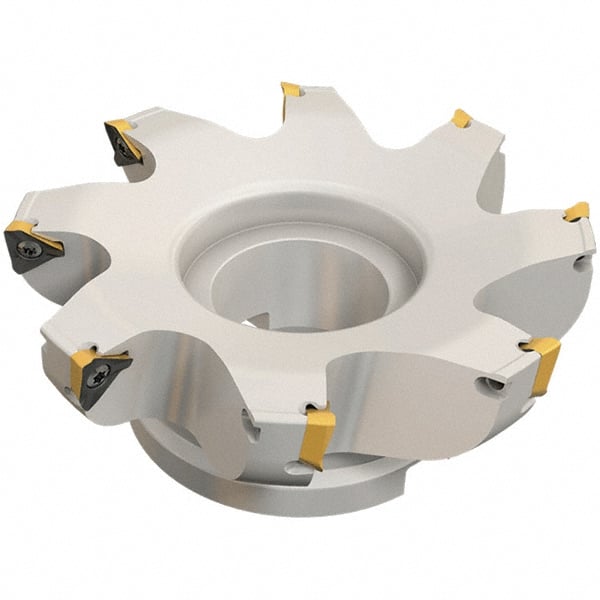

Iscar - 9 Inserts, 200mm Cut Diam, 60mm Arbor Diam, 13mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0/90° Lead Angle, 63mm High, HM390 TDKT 1505 Insert Compatibility, Through Coolant, Series HeliIQMill
Item #: 91165530
Brand: Iscar
Model #: 3106406
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 200.00 |
| Arbor Hole Diameter (mm) | 60.00 |
| Lead Angle | 0/90 |
| Overall Height (mm) | 63.00 |
| Insert Compatibility | HM390 TDKT 1505 |
| Series | HeliIQMill |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 13.00 |
| Number of Cutter Inserts | 9 |
| Insert Holding Method | Screw |
| Cutter Style | HM390 FTD-15 |
| Number of Flutes | 9 |
| Hub Diameter (mm) | 135.00 |
| Keyway Width (mm) | 25.70 |
| Counterbore Diameter (Decimal Inch) | 3.5430 |
| Complete Insert Compatibility | HM390 TDKT 1505 |
