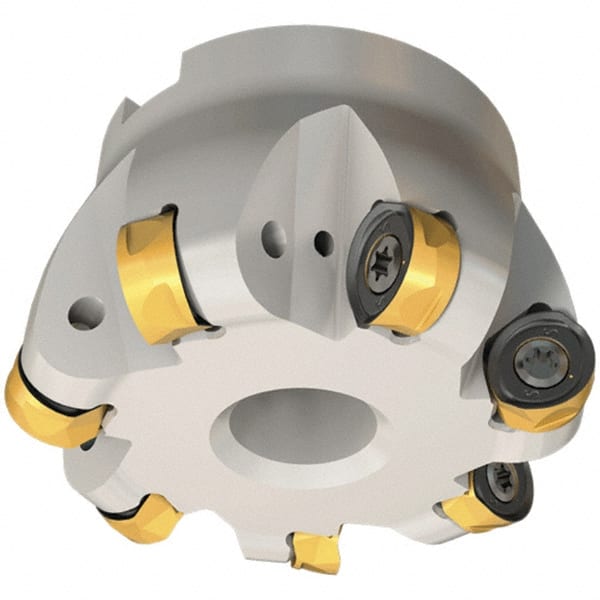

Iscar - 100mm Cut Diam, 12mm Max Depth, 32mm Arbor Hole, 9 Inserts, H400 RNHU Insert Style, Indexable Copy Face Mill - H400 FR-16 Cutter Style, 49.6mm High, Through Coolant, Series Helido
Item #: 91165803
Brand: Iscar
Model #: 3106007
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 100.00 |
| Maximum Depth of Cut (mm) | 12.00 |
| Arbor Hole Diameter (mm) | 32.00 |
| Overall Height (mm) | 49.60 |
| Series | Helido |
| Number of Cutter Inserts | 9 |
| Insert Compatibility | H400 RNHU |
| Cutter Style | H400 FR-16 |
| Through Coolant | Yes |
| Insert Holding Method | Screw |
| Counterbore Diameter (Decimal Inch) | 1.0630 |
| Complete Insert Compatibility | H400 RNHU |
