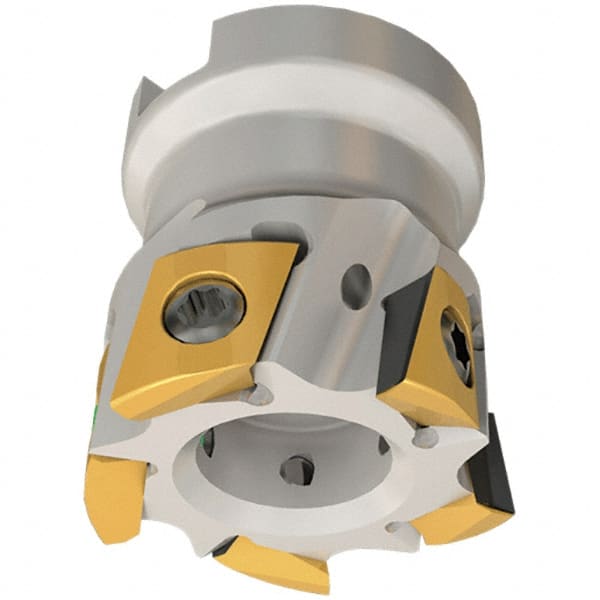

Iscar - 9 Inserts, 63mm Cut Diam, 22mm Arbor Diam, 9mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0/90° Lead Angle, 40mm High, T290 LN.T 1004 Insert Compatibility, Through Coolant, Series SumoMill
Item #: 91165860
Brand: Iscar
Model #: 3105980
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 63.00 |
| Arbor Hole Diameter (mm) | 22.00 |
| Lead Angle | 0/90 |
| Overall Height (mm) | 40.00 |
| Insert Compatibility | T290 LN.T 1004 |
| Series | SumoMill |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 9.00 |
| Number of Cutter Inserts | 9 |
| Insert Holding Method | Screw |
| Cutter Style | T290 FLN-10 |
| Number of Flutes | 9 |
| Keyway Width (mm) | 10.90 |
| Cutting Edge Length (Decimal Inch) | 0.3540 |
| Counterbore Diameter (Decimal Inch) | 1.1420 |
| Complete Insert Compatibility | T290 LNMT/LNHT 1004 |
