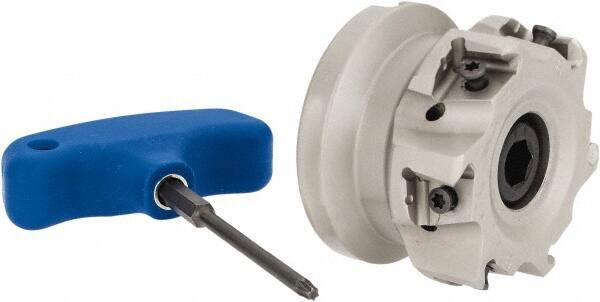

Iscar - 8 Inserts, 2-1/2" Cut Diam, 1" Arbor Diam, 0.492" Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0/90° Lead Angle, 1-3/4" High, T490 LN.T 1306 Insert Compatibility, Through Coolant, Series Helitang
Item #: 91166116
Brand: Iscar
Model #: 3105727
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 2.5000 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
| Lead Angle | 0/90 |
| Overall Height (Decimal Inch) | 1.7500 |
| Insert Compatibility | T490 LN.T 1306 |
| Series | Helitang |
| Through Coolant | Yes |
| Maximum Depth of Cut (Decimal Inch) | 0.4920 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 8 |
| Insert Holding Method | Screw |
| Cutter Style | T490 FLN-13 |
| Number of Flutes | 8 |
| Cutting Edge Length (Decimal Inch) | 0.4920 |
| Minimum Insert Radius (Decimal Inch) | 0.0310 |
| Complete Insert Compatibility | T490 LNMT/LNHT 1306 |
