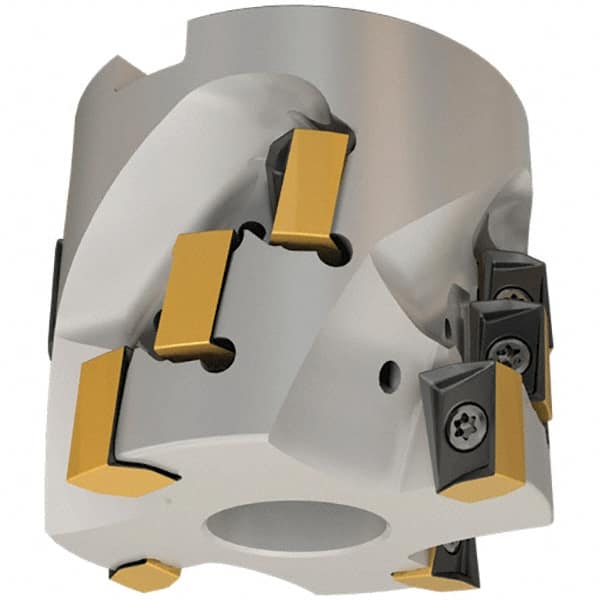

Iscar - 12 Inserts, 80mm Cut Diam, 32mm Arbor Diam, 46.5mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0/90° Lead Angle, 70mm High, H490 AN.X 17 Insert Compatibility, Through Coolant, Series Helido
Item #: 91166421
Brand: Iscar
Model #: 3105131
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 80.00 |
| Arbor Hole Diameter (mm) | 32.00 |
| Lead Angle | 0/90 |
| Overall Height (mm) | 70.00 |
| Insert Compatibility | H490 AN.X 17 |
| Series | Helido |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 46.50 |
| Number of Cutter Inserts | 12 |
| Insert Holding Method | Screw |
| Cutter Style | H490 SM-17 |
| Number of Flutes | 4 |
| Hub Diameter (mm) | 76.40 |
| Keyway Width (mm) | 14.40 |
| Maximum Body Diameter (Decimal Inch) | 3.0080 |
| Cutting Edge Length (Decimal Inch) | 1.8310 |
| Minimum Insert Radius (Decimal Inch) | 0.0310 |
| Counterbore Diameter (Decimal Inch) | 1.0630 |
| Complete Insert Compatibility | H490 ANKX/ANCX-17 |
