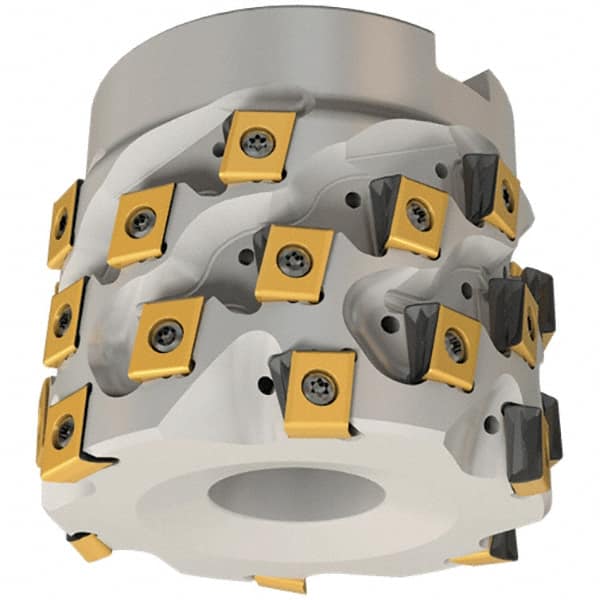

Iscar - 16 Inserts, 50mm Cut Diam, 27mm Arbor Diam, 47mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0/90° Lead Angle, 68mm High, T490 LN.. 1306 Insert Compatibility, Through Coolant, Series Helitang
Item #: 91166447
Brand: Iscar
Model #: 3105099
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 50.00 |
| Arbor Hole Diameter (mm) | 27.00 |
| Lead Angle | 0/90 |
| Overall Height (mm) | 68.00 |
| Insert Compatibility | T490 LN.. 1306 |
| Series | Helitang |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 47.00 |
| Number of Cutter Inserts | 16 |
| Insert Holding Method | Screw |
| Cutter Style | T490 SM-13 |
| Number of Flutes | 4 |
| Keyway Width (mm) | 12.40 |
| Cutting Edge Length (Decimal Inch) | 1.8500 |
| Minimum Insert Radius (Decimal Inch) | 0.0310 |
| Counterbore Diameter (Decimal Inch) | 0.7870 |
| Complete Insert Compatibility | T490 LNAR 1306; T490 LNMT/LNHT 1306 |
