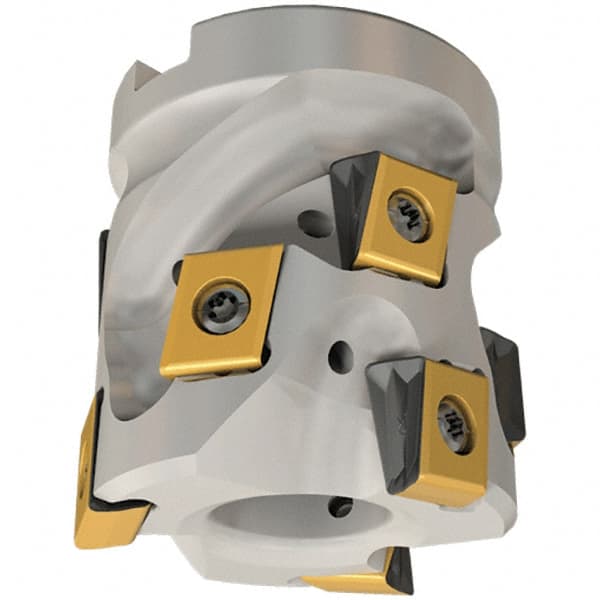

Iscar - 6 Inserts, 1-1/2" Cut Diam, 3/4" Arbor Diam, 1.43" Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0/90° Lead Angle, 2.44" High, T490 LN.. 1306 Insert Compatibility, Through Coolant, Series Helitang
Item #: 91166462
Brand: Iscar
Model #: 3181022
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.5000 |
| Arbor Hole Diameter (Decimal Inch) | 0.7500 |
| Lead Angle | 0/90 |
| Overall Height (Decimal Inch) | 2.4400 |
| Insert Compatibility | T490 LN.. 1306 |
| Series | Helitang |
| Through Coolant | Yes |
| Maximum Depth of Cut (Decimal Inch) | 1.4300 |
| Number of Cutter Inserts | 6 |
| Insert Holding Method | Screw |
| Cutter Style | T490 SM-13 |
| Number of Flutes | 2 |
| Cutting Edge Length (Decimal Inch) | 1.4300 |
| Minimum Insert Radius (Decimal Inch) | 0.0310 |
| Complete Insert Compatibility | T490 LNAR 1306; T490 LNMT/LNHT 1306 |
