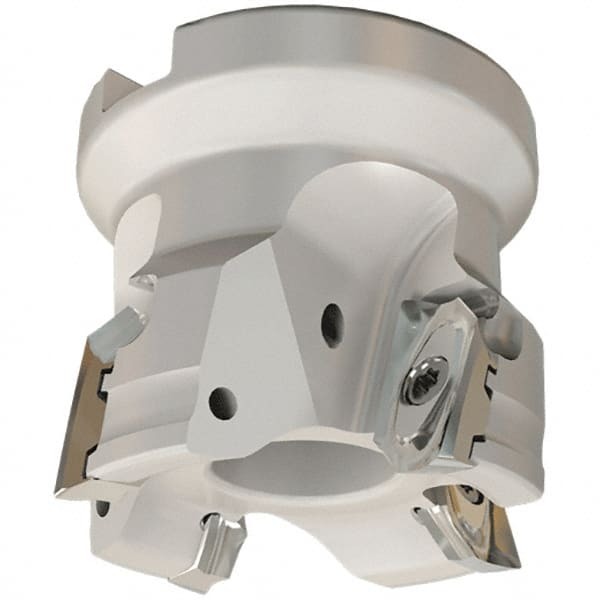

Iscar - 4 Inserts, 50mm Cut Diam, 22mm Arbor Diam, 13.5mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0/90° Lead Angle, 45mm High, HM90 AXCR 1505 Insert Compatibility, Through Coolant, Series Helialu
Item #: 91166488
Brand: Iscar
Model #: 3105020
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 50.00 |
| Arbor Hole Diameter (mm) | 22.00 |
| Lead Angle | 0/90 |
| Overall Height (mm) | 45.00 |
| Insert Compatibility | HM90 AXCR 1505 |
| Series | Helialu |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 13.50 |
| Number of Cutter Inserts | 4 |
| Insert Holding Method | Screw |
| Cutter Style | HM90 FAL-15 |
| Number of Flutes | 4 |
| Keyway Width (mm) | 10.40 |
| Maximum RPM | 23000 |
| Cutting Edge Length (Decimal Inch) | 0.5310 |
| Minimum Insert Radius (Decimal Inch) | 0.0080 |
| Counterbore Diameter (Decimal Inch) | 0.7090 |
| Complete Insert Compatibility | HM90 AXCR 1505 |
