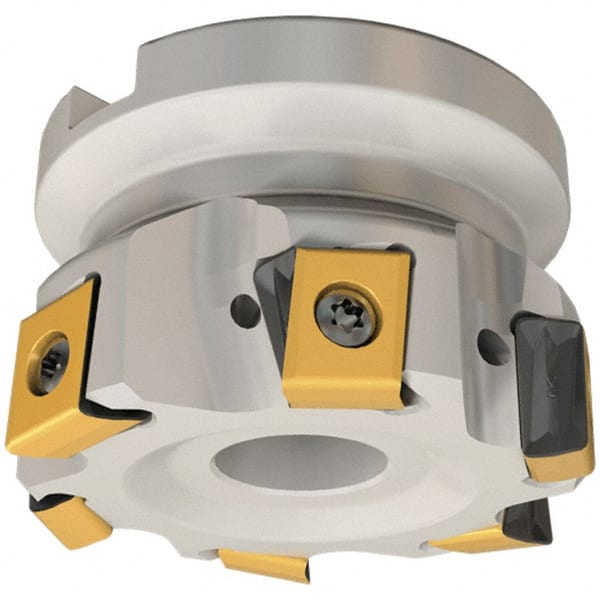

Iscar - 6 Inserts, 63mm Cut Diam, 22mm Arbor Diam, 12.5mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0/90° Lead Angle, 40mm High, T490 LN.. 1306 Insert Compatibility, Through Coolant, Series Helitang
Item #: 91166504
Brand: Iscar
Model #: 3104927
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 63.00 |
| Arbor Hole Diameter (mm) | 22.00 |
| Lead Angle | 0/90 |
| Overall Height (mm) | 40.00 |
| Insert Compatibility | T490 LN.. 1306 |
| Series | Helitang |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 12.50 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 6 |
| Insert Holding Method | Screw |
| Cutter Style | T490 FLN-13 |
| Number of Flutes | 6 |
| Keyway Width (mm) | 10.40 |
| Cutting Edge Length (Decimal Inch) | 0.4920 |
| Minimum Insert Radius (Decimal Inch) | 0.0310 |
| Counterbore Diameter (Decimal Inch) | 0.7090 |
| Complete Insert Compatibility | T490 LNAR 1306; T490 LNMT/LNHT 1306 |
