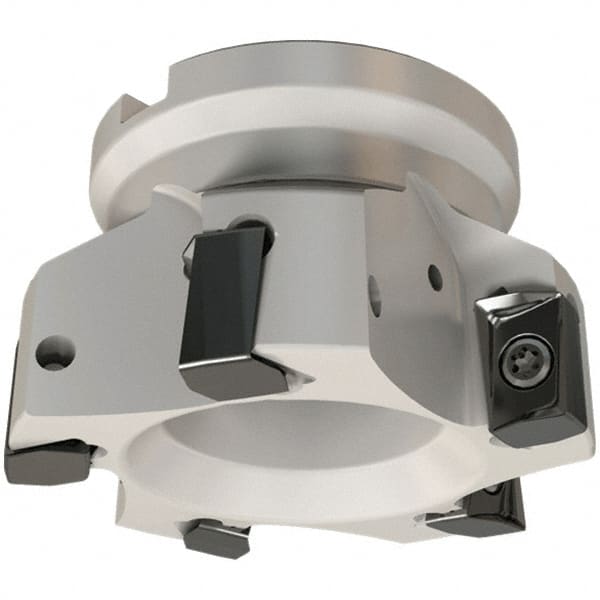

Iscar - 7 Inserts, 125mm Cut Diam, 38.1mm Arbor Diam, 16.3mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0/90° Lead Angle, 63mm High, H490 AN.X 17 Insert Compatibility, Through Coolant, Series Helido
Item #: 91166652
Brand: Iscar
Model #: 3104635
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 125.00 |
| Arbor Hole Diameter (mm) | 38.10 |
| Lead Angle | 0/90 |
| Overall Height (mm) | 63.00 |
| Insert Compatibility | H490 AN.X 17 |
| Series | Helido |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 16.30 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 7 |
| Insert Holding Method | Screw |
| Cutter Style | H490 F90AX-17 |
| Number of Flutes | 7 |
| Minimum Insert Radius (Decimal Inch) | 0.0160 |
| Complete Insert Compatibility | H490 ANKX/ANCX 1706-FF; H490 ANKX/ANCX-17 |
