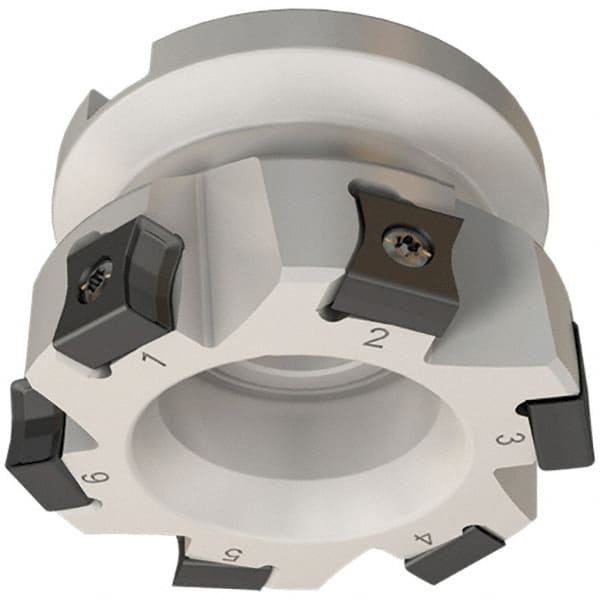

Iscar - 9 Inserts, 100mm Cut Diam, 31.75mm Arbor Diam, 10mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0/90° Lead Angle, 50mm High, LN.. 11.. Insert Compatibility, Series AluTang
Item #: 91167064
Brand: Iscar
Model #: 3103218
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 100.00 |
| Arbor Hole Diameter (mm) | 31.75 |
| Lead Angle | 0/90 |
| Overall Height (mm) | 50.00 |
| Insert Compatibility | LN.. 11.. |
| Series | AluTang |
| Through Coolant | No |
| Maximum Depth of Cut (mm) | 10.00 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 9 |
| Insert Holding Method | Screw |
| Cutter Style | F90LN-N11 |
| Number of Flutes | 9 |
| Cutting Edge Length (Decimal Inch) | 0.3940 |
| Minimum Insert Radius (Decimal Inch) | 0.0160 |
| Complete Insert Compatibility | LNAR 1106; LNAR 1106 (PCD); LNAR 1106PN-R-S-W (PCD); LNAT 1106-W; LNAW-11 (CBN); LNHT 1106PN-N HT; LNHT 1106PN-R HT; LNKX/LNMT 1106 |
