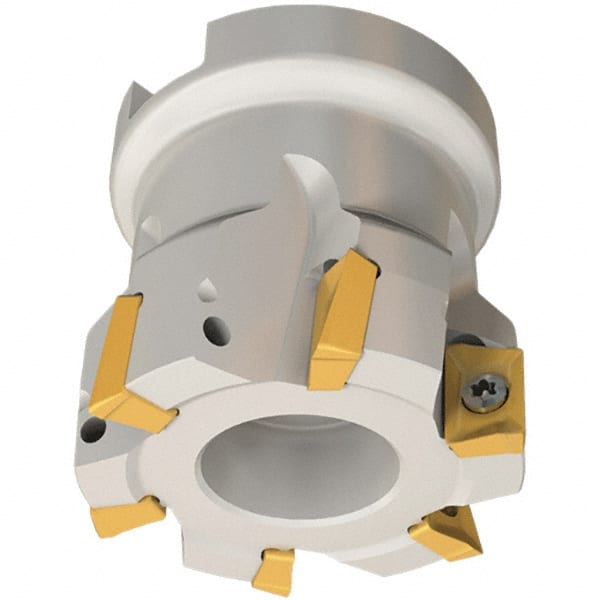

Iscar - 7 Inserts, 63mm Cut Diam, 22mm Arbor Diam, 10mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0/90° Lead Angle, 40mm High, AP.. 1003 Insert Compatibility, Series Heli2000
Item #: 91167627
Brand: Iscar
Model #: 3102065
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 63.00 |
| Arbor Hole Diameter (mm) | 22.00 |
| Lead Angle | 0/90 |
| Overall Height (mm) | 40.00 |
| Insert Compatibility | AP.. 1003 |
| Series | Heli2000 |
| Through Coolant | No |
| Maximum Depth of Cut (mm) | 10.00 |
| Number of Cutter Inserts | 7 |
| Insert Holding Method | Screw |
| Cutter Style | HM90 F90AP-10 |
| Number of Flutes | 7 |
| Keyway Width (mm) | 10.90 |
| Maximum RPM | 25198 |
| Cutting Edge Length (Decimal Inch) | 0.3940 |
| Minimum Insert Radius (Decimal Inch) | 0.0080 |
| Counterbore Diameter (Decimal Inch) | 1.1420 |
| Complete Insert Compatibility | AP..10.. |
