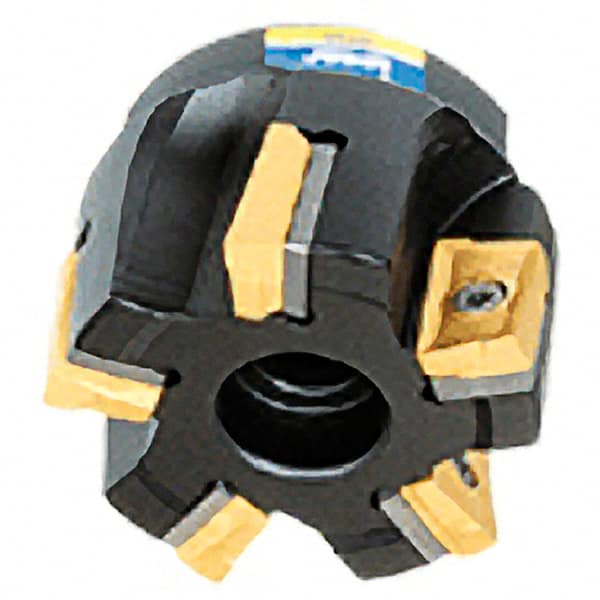

Iscar - 7 Inserts, 63mm Cut Diam, 25.4mm Arbor Diam, 12.5mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0/90° Lead Angle, 50mm High, 3M AXKT 1304 Insert Compatibility, Series Mill2000
Item #: 91167684
Brand: Iscar
Model #: 3101613
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 63.00 |
| Cutting Diameter (Decimal Inch) | 2.4803 |
| Arbor Hole Diameter (mm) | 25.40 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
| Lead Angle | 0/90 |
| Overall Height (mm) | 50.00 |
| Overall Height (Decimal Inch) | 1.9685 |
| Insert Compatibility | 3M AXKT 1304 |
| Series | Mill2000 |
| Through Coolant | No |
| Maximum Depth of Cut (mm) | 12.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.4920 |
| Number of Cutter Inserts | 7 |
| Insert Holding Method | Screw |
| Cutter Style | 3M F90AX-13 |
| Number of Flutes | 7 |
| Cutting Edge Length (Decimal Inch) | 0.4920 |
| Minimum Insert Radius (Decimal Inch) | 0.0240 |
| Complete Insert Compatibility | 3M AXKT 1304; 3M AXKT 1304..R-PDRMM |
