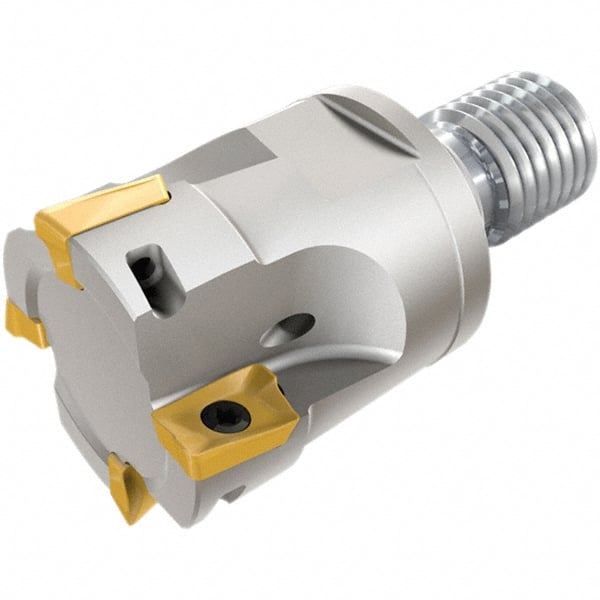

Iscar - 25mm Cut Diam, 10mm Max Depth of Cut, 35mm OAL, Indexable Square Shoulder End Mill - HM90 AP.. 1003.. Inserts, M12 Modular Connection, 90° Lead Angle, Through Coolant, Series Heli2000, Multimaster
Item #: 91168047
Brand: Iscar
Model #: 3110729
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 25.00 |
| Shank Type | Modular Connection |
| Modular Connection Size | M12 |
| Overall Length/Projection (mm) | 35.00 |
| Lead Angle | 90 |
| Series | Heli2000, Multimaster |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (mm) | 10.00 |
| Number of Cutter Inserts | 4 |
| Insert Holding Method | Screw |
| End Mill Type | End Mill |
| Cutter Style | HM90 E90A-M-10 |
| Number of Flutes | 4 |
| Insert Compatibility | HM90 AP.. 1003.. |
