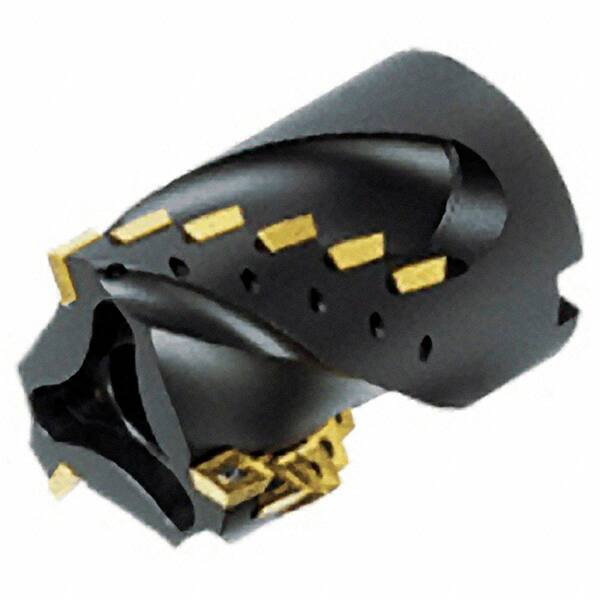

Iscar - 15 Inserts, 63mm Cut Diam, 27mm Arbor Diam, 53mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0/90° Lead Angle, 76.2mm High, QD.T 1205..PD.. & SDM..HQ Insert Compatibility, Series Heliquad
Item #: 91168112
Brand: Iscar
Model #: 3110418
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 63.00 |
| Arbor Hole Diameter (mm) | 27.00 |
| Lead Angle | 0/90 |
| Overall Height (mm) | 76.20 |
| Insert Compatibility | QD.T 1205..PD..; SDM..HQ |
| Series | Heliquad |
| Through Coolant | No |
| Maximum Depth of Cut (mm) | 53.00 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 15 |
| Insert Holding Method | Screw |
| Cutter Style | SDK Shell Mill-FT |
| Number of Flutes | 3 |
| Hub Diameter (mm) | 60.86 |
| Keyway Width (mm) | 12.40 |
| Maximum Body Diameter (Decimal Inch) | 2.4800 |
| Cutting Edge Length (Decimal Inch) | 2.0870 |
| Minimum Insert Radius (Decimal Inch) | 0.0310 |
| Counterbore Diameter (Decimal Inch) | 0.7870 |
| Complete Insert Compatibility | QDCT-PDN; QDMT 1205..PDTN-M; QDMT 1205PDN-RM; SDMR-HQ; SDMT-PDR-HQ |
