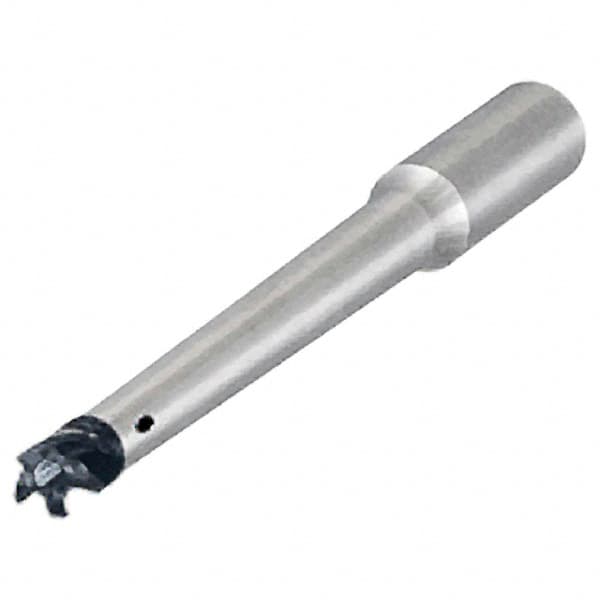

Iscar - Multimaster 1-1/4" 89° Shank Milling Tip Insert Holder & Shank - T15 Neck Thread, 8" OAL, Carbide MM S-D Tool Holder
Item #: 91170639
Brand: Iscar
Model #: 3105416
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | Multimaster |
| Shank Type | 89 Degree Shank |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Neck Thread Size | T15 |
| Toolholder Material | Carbide |
| Overall Length (Decimal Inch) | 8.0000 |
| Through Coolant | NonThrough Coolant |
| Weldon Flat | No |
| Effective Length (Decimal Inch) | 5.0000 |
| Milling Tip Style | ERW-MM, FF EWX-MM-05, H400 ER-MM, HCM-MM, MM EA, MM EB, MM ECF45, MM EFS, MM ERS |
| Shank Shape | Straight |
| Toolholder Style | MM S-D |
