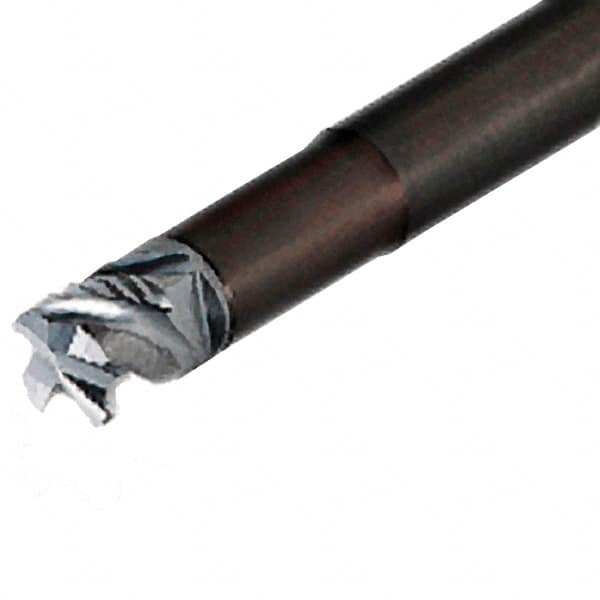

Iscar - Multimaster 20mm 90° Shank Milling Tip Insert Holder & Shank - T12 Neck Thread, 90mm OAL, Carbide MM S-A Tool Holder
Item #: 91170704
Brand: Iscar
Model #: 3103845
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | Multimaster |
| Shank Type | 90 Degree Shank |
| Shank Diameter (mm) | 20.00 |
| Neck Thread Size | T12 |
| Toolholder Material | Carbide |
| Overall Length (mm) | 90.00 |
| Through Coolant | NonThrough Coolant |
| Weldon Flat | No |
| Head Length (Decimal Inch) | 1.4410 |
| Effective Length (mm) | 40.00 |
| Milling Tip Style | E93CN-MM, HCE-MM, HCM-MM, HM90 E90A-MM-10, HP E90AN-MM-07, MM EB, MM EC-4, MM ERS, MM HBR, MM HCD |
| Shank Shape | Straight |
| Toolholder Style | MM S-A |
