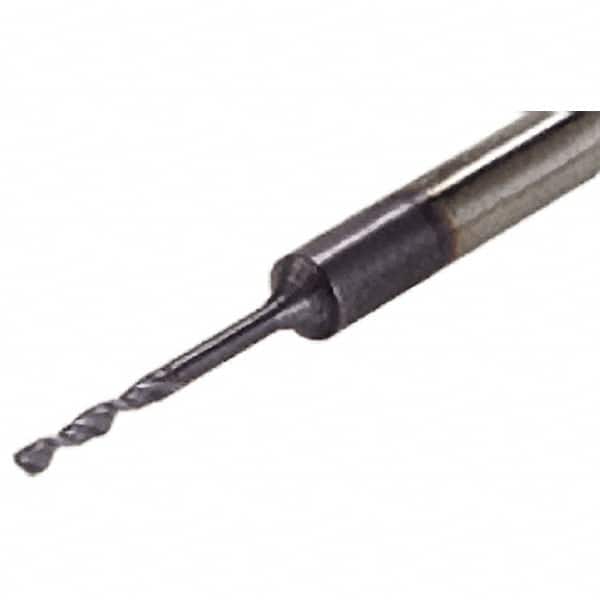

Iscar - 2mm 140° Solid Carbide Jobber Drill
Item #: 91170886
Brand: Iscar
Model #: 5530629
Product Specifications
| Drill Bit Size (mm) | 2.00 |
| Drill Bit Size (Decimal Inch) | 0.0785 |
| Drill Point Angle | 140 |
| Drill Bit Material | Solid Carbide |
| Drill Bit Finish/Coating | TiAlN |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Shank Type | Straight |
| Coolant Through | No |
| Flute Length (mm) | 12.00 |
| Flute Length (Decimal Inch) | 0.4724 |
| Overall Length (mm) | 60.00 |
| Flute Length x Diameter Ratio | 4xD |
| Point Type | Standard |
| Shank Diameter (mm) | 3.00 |
| Maximum Drilling Depth (mm) | 8.00 |
| Spiral Type | Regular Spiral |
| Shank Length (mm) | 44.00 |
| Shank Length (Decimal Inch) | 1.7323 |
| Specification Designation | DIN |
| Web Configuration | Tapered |
| Number of Flutes | 2 |
| Specification Number | DIN 6537 |
| Material Grade | Submicron |
| Series/List | SCD-AP4 |
