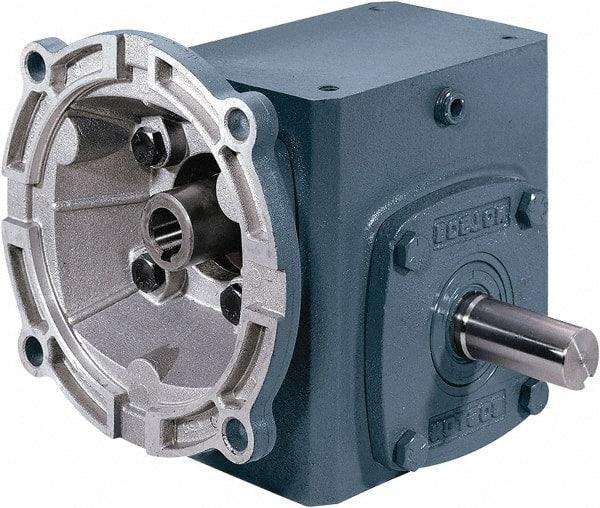

Boston Gear - 6 Centerline Distance, 50:1, 35 RPM Output, 7.65 Input Horsepower, 9,836 Lbs. Max Torque, Speed Reducer - Part No. RF760-50-B11-J, Single Shaft Right, 1-3/8" Bore, 12-1/2" High, 210TC NEMA
Item #: 91229559
Brand: Boston Gear
Model #: 52859
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Centerline Distance (Decimal Inch) | 6.000 |
| Ratio | 50:1 |
| NEMA Size | 210TC |
| PartNo | RF760-50-B11-J |
| Shaft Style | Single Shaft Right |
| Bore Size (Decimal Inch) | 1.3750 |
| Height (Inch) | 12.5 |
| Maximum Torque Inch/Lbs (Pounds) | 9836.00 |
| Maximum Input Horsepower | 7.65 |
| Output RPM at 1750 Input | 35.0 |
