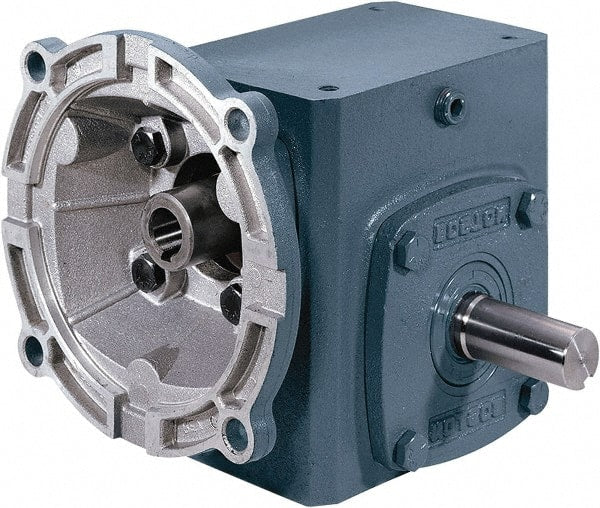

Boston Gear - 5.16 Centerline Distance, 30:1, 58 RPM Output, 9.12 Input Horsepower, 8,336 Lbs. Max Torque, Speed Reducer - Part No. RF752-30-B9-J, Single Shaft Right, 1-1/8" Bore, 10-1/2" High, 180TC NEMA
Item #: 91229641
Brand: Boston Gear
Model #: 52930
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Centerline Distance (Decimal Inch) | 5.160 |
| Ratio | 30:1 |
| NEMA Size | 180TC |
| PartNo | RF752-30-B9-J |
| Shaft Style | Single Shaft Right |
| Bore Size (Decimal Inch) | 1.125 |
| Height (Inch) | 10.5 |
| Maximum Torque Inch/Lbs (Pounds) | 8336.00 |
| Maximum Input Horsepower | 9.12 |
| Output RPM at 1750 Input | 58.0 |
