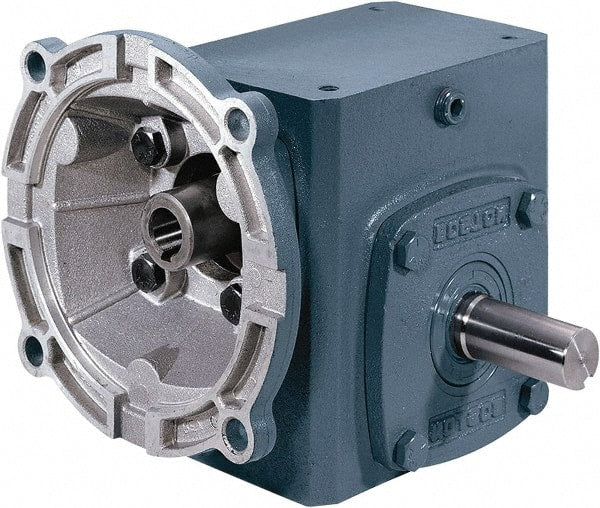

Boston Gear - 2.06 Centerline Distance, 25:1, 70 RPM Output, 1.16 Input Horsepower, 875 Lbs. Max Torque, Speed Reducer - Part No. F721-25-B5-J, Single Shaft Right, 5/8" Bore, 4.34" High, 56C NEMA
Item #: 91230201
Brand: Boston Gear
Model #: 51968
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Centerline Distance (Decimal Inch) | 2.060 |
| Ratio | 25:1 |
| NEMA Size | 56C |
| PartNo | F721-25-B5-J |
| Shaft Style | Single Shaft Right |
| Bore Size (Decimal Inch) | 0.625 |
| Height (Inch) | 4.34 |
| Maximum Torque Inch/Lbs (Pounds) | 875.00 |
| Maximum Input Horsepower | 1.16 |
| Output RPM at 1750 Input | 70.0 |
