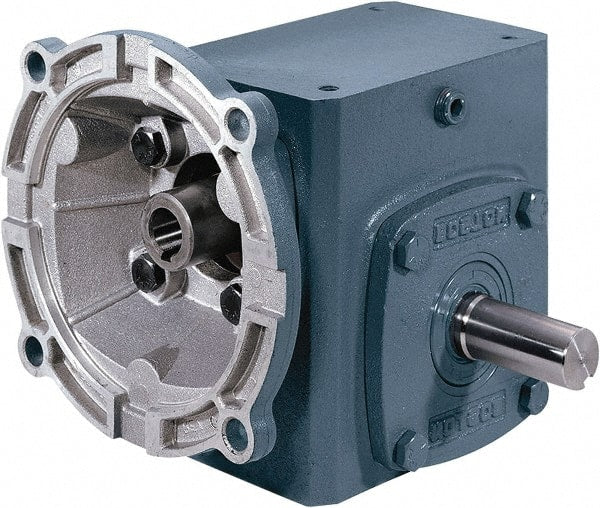

Boston Gear - 2.06 Centerline Distance, 10:1, 175 RPM Output, 2.34 Input Horsepower, 789 Lbs. Max Torque, Speed Reducer - Part No. F721-10-B7-J, Single Shaft Right, 7/8" Bore, 4.34" High, 140TC NEMA
Item #: 91230268
Brand: Boston Gear
Model #: 51959
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Centerline Distance (Decimal Inch) | 2.060 |
| Ratio | 10:1 |
| NEMA Size | 140TC |
| PartNo | F721-10-B7-J |
| Shaft Style | Single Shaft Right |
| Bore Size (Decimal Inch) | 0.875 |
| Height (Inch) | 4.34 |
| Maximum Torque Inch/Lbs (Pounds) | 789.00 |
| Maximum Input Horsepower | 2.34 |
| Output RPM at 1750 Input | 175.0 |
