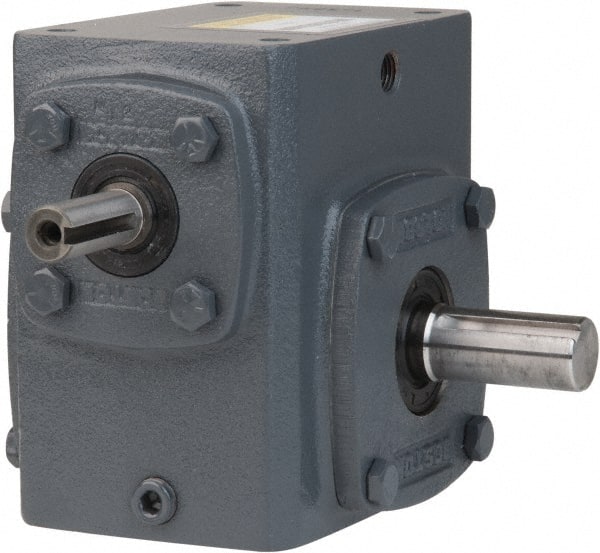

Boston Gear - 2.38 Centerline Distance, 15:1, 117 RPM Output, 2.34 Input Horsepower, 1,159 Lbs. Max Torque, Speed Reducer - Part No. 724-15-J, 3/4" Shaft Diam, Single Shaft Right, 4.88" High
Item #: 91235390
Brand: Boston Gear
Model #: 51716
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Centerline Distance (Decimal Inch) | 2.380 |
| Ratio | 15:1 |
| PartNo | 724-15-J |
| Shaft Style | Single Shaft Right |
| Shaft Diameter (Decimal Inch) | 0.7500 |
| Height (Inch) | 4.88 |
| Maximum Torque Inch/Lbs (Pounds) | 1159.00 |
| Maximum Input Horsepower | 2.34 |
| Output RPM at 1750 Input | 117.0 |
