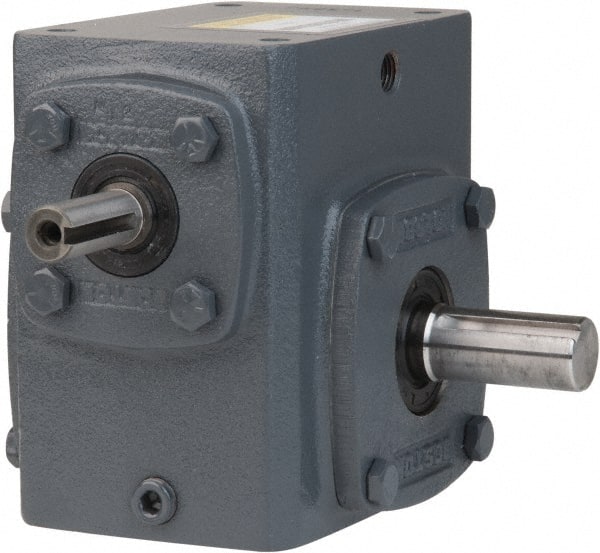

Boston Gear - 2.06 Centerline Distance, 10:1, 175 RPM Output, 2.34 Input Horsepower, 789 Lbs. Max Torque, Speed Reducer - Part No. 721-10-J, 5/8" Shaft Diam, Single Shaft Right, 4.34" High
Item #: 91235481
Brand: Boston Gear
Model #: 51686
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Centerline Distance (Decimal Inch) | 2.060 |
| Ratio | 10:1 |
| PartNo | 721-10-J |
| Shaft Style | Single Shaft Right |
| Shaft Diameter (Decimal Inch) | 0.6250 |
| Height (Inch) | 4.34 |
| Maximum Torque Inch/Lbs (Pounds) | 789.00 |
| Maximum Input Horsepower | 2.34 |
| Output RPM at 1750 Input | 175.0 |
