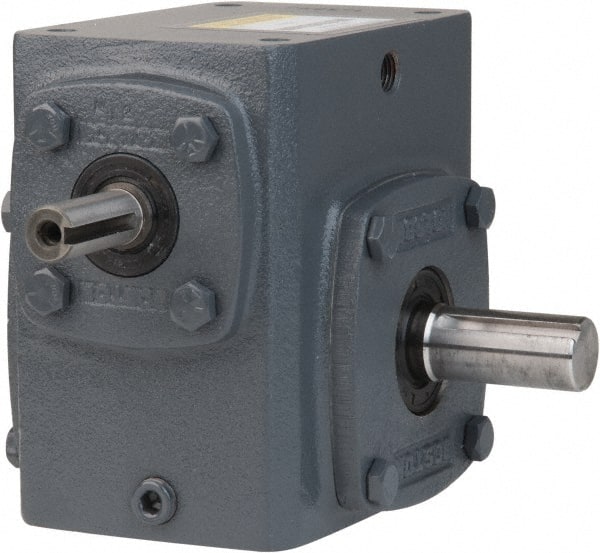

Boston Gear - 1-3/4 Centerline Distance, 15:1, 117 RPM Output, 1.13 Input Horsepower, 552 Lbs. Max Torque, Speed Reducer - Part No. 718-15-J, 5/8" Shaft Diam, Single Shaft Right, 3.81" High
Item #: 91235549
Brand: Boston Gear
Model #: 51662
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Centerline Distance (Decimal Inch) | 1.750 |
| Ratio | 15:1 |
| PartNo | 718-15-J |
| Shaft Style | Single Shaft Right |
| Shaft Diameter (Decimal Inch) | 0.6250 |
| Height (Inch) | 3.81 |
| Maximum Torque Inch/Lbs (Pounds) | 552.00 |
| Maximum Input Horsepower | 1.13 |
| Output RPM at 1750 Input | 117.0 |
