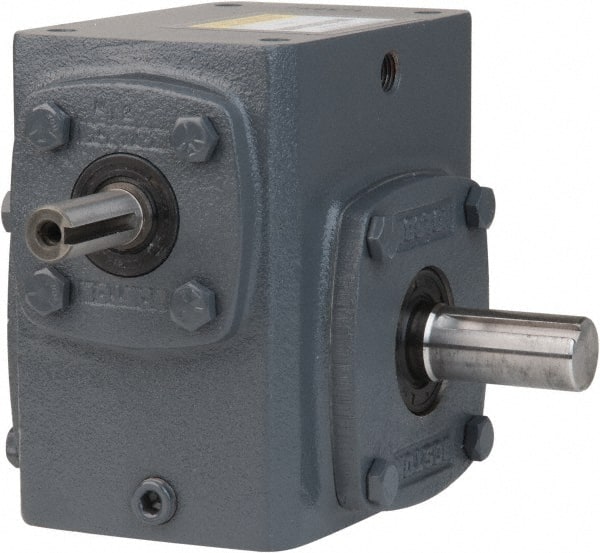

Boston Gear - 5.16 Centerline Distance, 60:1, 29 RPM Output, 4.59 Input Horsepower, 6,953 Lbs. Max Torque, Speed Reducer - Part No. 752-60-J, 1-1/4" Shaft Diam, Single Shaft Right, 10-1/2" High
Item #: 91235945
Brand: Boston Gear
Model #: 51827
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Centerline Distance (Decimal Inch) | 5.160 |
| Ratio | 60:1 |
| PartNo | 752-60-J |
| Shaft Style | Single Shaft Right |
| Shaft Diameter (Decimal Inch) | 1.2500 |
| Height (Inch) | 10.5 |
| Maximum Torque Inch/Lbs (Pounds) | 6953.00 |
| Maximum Input Horsepower | 4.59 |
| Output RPM at 1750 Input | 29.0 |
