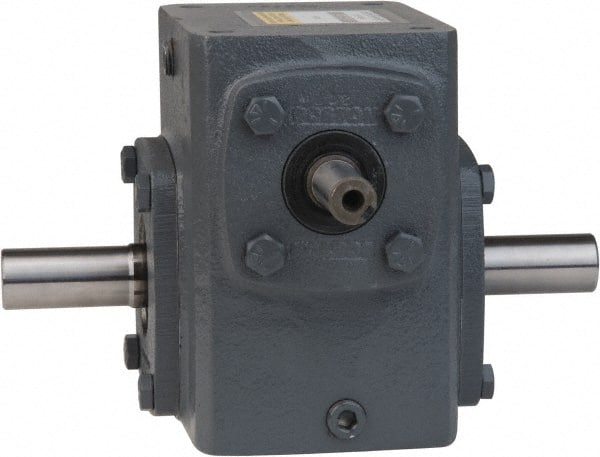

Boston Gear - 3-3/4 Centerline Distance, 15:1, 117 RPM Output, 7.47 Input Horsepower, 3,543 Lbs. Max Torque, Speed Reducer - Part No. 738-15-H, 1" Shaft Diam, Double Shaft Left & Right, 7.63" High
Item #: 91236620
Brand: Boston Gear
Model #: 51790
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Centerline Distance (Decimal Inch) | 3.750 |
| Ratio | 15:1 |
| PartNo | 738-15-H |
| Shaft Style | Double Shaft Left/Right |
| Shaft Diameter (Decimal Inch) | 1.0000 |
| Height (Inch) | 7.63 |
| Maximum Torque Inch/Lbs (Pounds) | 3543.00 |
| Maximum Input Horsepower | 7.47 |
| Output RPM at 1750 Input | 117.0 |
