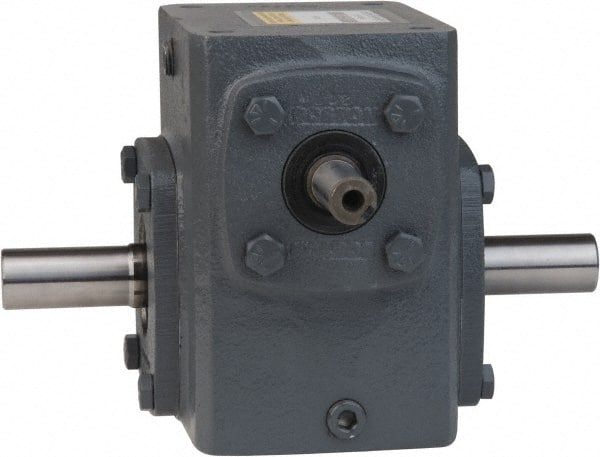

Boston Gear - 2.06 Centerline Distance, 40:1, 44 RPM Output, 0.81 Input Horsepower, 876 Lbs. Max Torque, Speed Reducer - Part No. 721-40-H, 5/8" Shaft Diam, Double Shaft Left & Right, 4.34" High
Item #: 91236935
Brand: Boston Gear
Model #: 51700
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Centerline Distance (Decimal Inch) | 2.060 |
| Ratio | 40:1 |
| PartNo | 721-40-H |
| Shaft Style | Double Shaft Left/Right |
| Shaft Diameter (Decimal Inch) | 0.6250 |
| Height (Inch) | 4.34 |
| Maximum Torque Inch/Lbs (Pounds) | 876.00 |
| Maximum Input Horsepower | 0.81 |
| Output RPM at 1750 Input | 44.0 |
