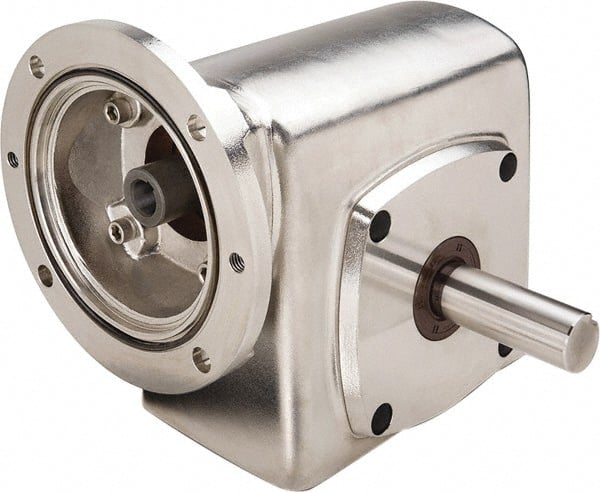

Boston Gear - 2.06 Centerline Distance, 30:1, 58 RPM Output, 0.99 Input Horsepower, 871 Lbs. Max Torque, Speed Reducer - Part No. SSF72130KB5JS, Single Shaft Right, 5/8" Bore, 4.34" High, 56C NEMA
Item #: 91243006
Brand: Boston Gear
Model #: H07638
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Centerline Distance (Decimal Inch) | 2.060 |
| Ratio | 30:1 |
| NEMA Size | 56C |
| PartNo | SSF72130KB5JS |
| Shaft Style | Single Shaft Right |
| Bore Size (Decimal Inch) | 0.625 |
| Height (Inch) | 4.34 |
| Maximum Torque Inch/Lbs (Pounds) | 871.00 |
| Maximum Input Horsepower | 0.99 |
| Output RPM at 1750 Input | 58.0 |
