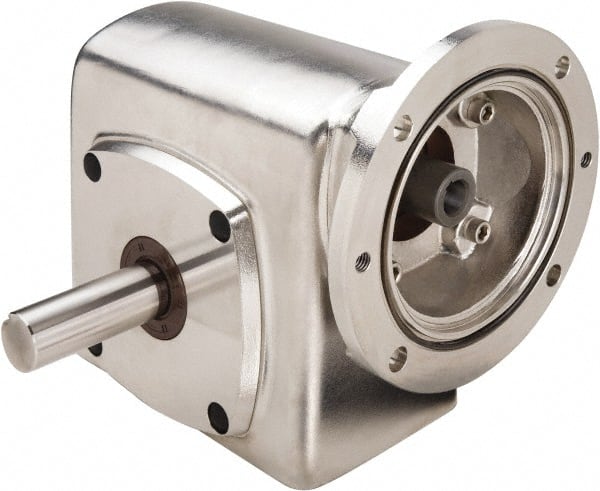

Boston Gear - 1-3/4 Centerline Distance, 50:1, 35 RPM Output, 0.44 Input Horsepower, 573 Lbs. Max Torque, Speed Reducer - Part No. SSF71850KB5GS, Single Shaft Left, 5/8" Bore, 3.81" High, 56C NEMA
Item #: 91243063
Brand: Boston Gear
Model #: H09990
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Centerline Distance (Decimal Inch) | 1.750 |
| Ratio | 50:1 |
| NEMA Size | 56C |
| PartNo | SSF71850KB5GS |
| Shaft Style | Single Shaft Left |
| Bore Size (Decimal Inch) | 0.625 |
| Height (Inch) | 3.81 |
| Maximum Torque Inch/Lbs (Pounds) | 573.00 |
| Maximum Input Horsepower | 0.44 |
| Output RPM at 1750 Input | 35.0 |
