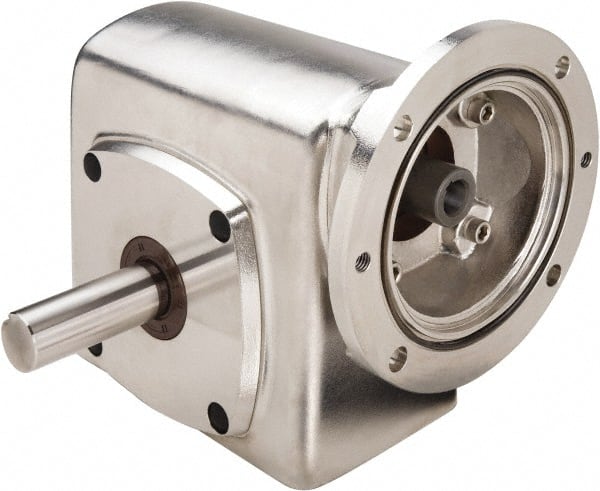

Boston Gear - 1-3/4 Centerline Distance, 10:1, 175 RPM Output, 1.61 Input Horsepower, 536 Lbs. Max Torque, Speed Reducer - Part No. SSF71810KB5GS, Single Shaft Left, 5/8" Bore, 3.81" High, 56C NEMA
Item #: 91243139
Brand: Boston Gear
Model #: H07831
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Centerline Distance (Decimal Inch) | 1.750 |
| Ratio | 10:1 |
| NEMA Size | 56C |
| PartNo | SSF71810KB5GS |
| Shaft Style | Single Shaft Left |
| Bore Size (Decimal Inch) | 0.625 |
| Height (Inch) | 3.81 |
| Maximum Torque Inch/Lbs (Pounds) | 536.00 |
| Maximum Input Horsepower | 1.61 |
| Output RPM at 1750 Input | 175.0 |
