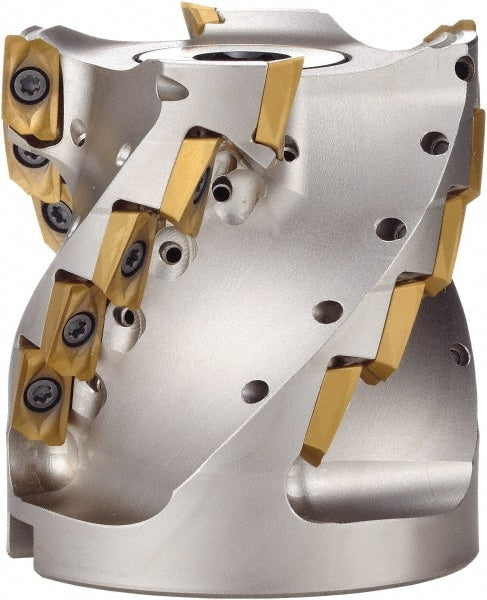

50mm Cut Diam, 22mm Arbor Hole Diam, 74mm Max Depth, Indexable Square-Shoulder Face Mill
Item #: 55704548
Brand: OSG
Model #: 7802850
Product Specifications
| Maximum Cutting Diameter (Decimal Inch) | 1.9685 |
| Maximum Cutting Diameter (mm) | 50.00 |
| Maximum Depth of Cut (mm) | 74.00 |
| Arbor Hole Diameter (mm) | 22.00 |
| Compatible Insert Size Code | ZDKT15... |
| Cutter Style | PSEL |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw; Clamp |
| Lead Angle | 0 |
| Series | 78028 |
| Overall Height (Mm - 5 Decimals) | 74.00 |
| Keyway Width (mm) | 10.40 |
| Hub Diameter (mm) | 45.00 |
| Keyway Depth (mm) | 6.00 |
| UNSPSC Code | 27112803 |
| Toolholder Material | Steel |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 3 |
| Number Of Flutes | 3 |
| Maximum Cutting Diameter (Decimal Inch) | 1.9685 |
| Maximum Cutting Diameter (mm) | 50.00 |
| Maximum Depth of Cut (mm) | 74.00 |
| Arbor Hole Diameter (mm) | 22.00 |
| Compatible Insert Size Code | ZDKT15... |
| Cutter Style | PSEL |
| Cutting Direction | Right Hand |
| Insert Holding Method | Screw; Clamp |
| Lead Angle | 0 |
| Series | 78028 |
| Overall Height (Mm - 5 Decimals) | 74.00 |
| Keyway Width (mm) | 10.40 |
| Hub Diameter (mm) | 45.00 |
| Keyway Depth (mm) | 6.00 |
| UNSPSC Code | 27112803 |
| Toolholder Material | Steel |
| Coolant Through | Yes |
| Number Of Cutter Inserts | 3 |
| Number Of Flutes | 3 |
| MSC Part # | 55704548 |
| Mfr Part # | 7802850 |
| Country of Origin Country of Origin is subject to change | Japan |
