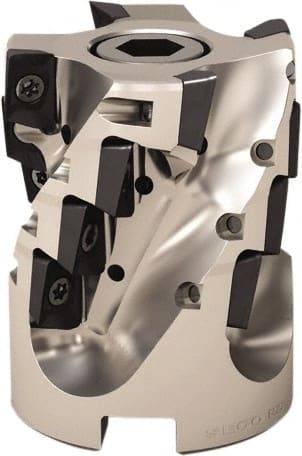

Seco - 25 Inserts, 4" Cut Diam, 1-1/2" Arbor Diam, 3.03" Max Depth of Cut, Indexable Square-Shoulder Face Mill - 3.94" High, XO.. 1806 Insert Compatibility, Through Coolant, Series Power Turbo
Item #: 91413807
Brand: Seco
Model #: 62467
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 4.0000 |
| Arbor Hole Diameter (Decimal Inch) | 1.5000 |
| Overall Height (Decimal Inch) | 3.9400 |
| Insert Compatibility | XO.. 1806 |
| Series | Power Turbo |
| Through Coolant | Yes |
| Maximum Depth of Cut (Decimal Inch) | 3.0300 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 25 |
| Insert Holding Method | Screw |
| Number of Flutes | 5 |
| Keyway Width (Decimal Inch) | 0.6300 |
| Maximum RPM | 6300 |
| Complete Insert Compatibility | XOEX 180604FR-E10; XOEX 180608FR-E10; XOEX 180616FR-E10; XOEX 180620FR-E10; XOEX 180624FR-E10; XOEX 180631FR-E10; XOEX 180640FR-E10; XOEX 180650FR-E10; XOEX 180663FR-E10; XOMX 180604R-M10; XOMX 180604TR-ME13; XOMX 180608R-M10; XOMX 180608TR-D16; XOMX 1806 |
