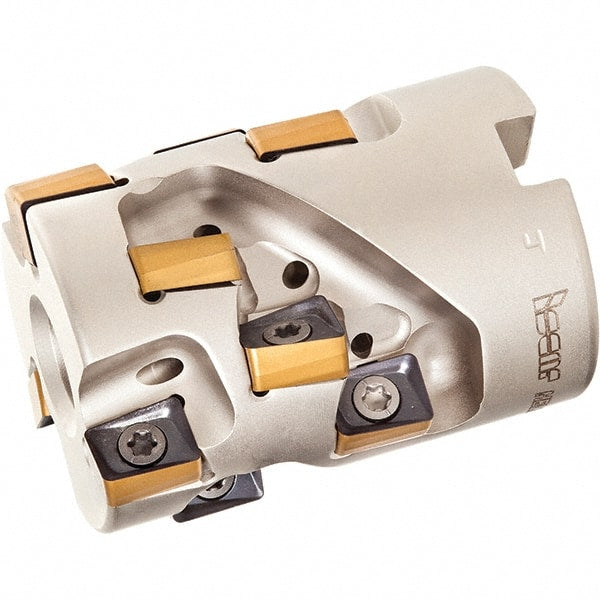

Iscar - 12 Inserts, 1-1/4" Cut Diam, 1/2" Arbor Diam, 1.12" Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0/90° Lead Angle, 1.77" High, H490 AN.X 09 Insert Compatibility, Through Coolant, Series Helido
Item #: 91427112
Brand: Iscar
Model #: 3106158
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.2500 |
| Arbor Hole Diameter (Decimal Inch) | 0.5000 |
| Lead Angle | 0/90 |
| Overall Height (Decimal Inch) | 1.7700 |
| Insert Compatibility | H490 AN.X 09 |
| Series | Helido |
| Through Coolant | Yes |
| Maximum Depth of Cut (Decimal Inch) | 1.1200 |
| Number of Cutter Inserts | 12 |
| Insert Holding Method | Screw |
| Cutter Style | H490 SM-09 |
| Number of Flutes | 3 |
| Cutting Edge Length (Decimal Inch) | 1.1200 |
| Minimum Insert Radius (Decimal Inch) | 0.0160 |
| Complete Insert Compatibility | H490 ANKX/ANCX-09 |
