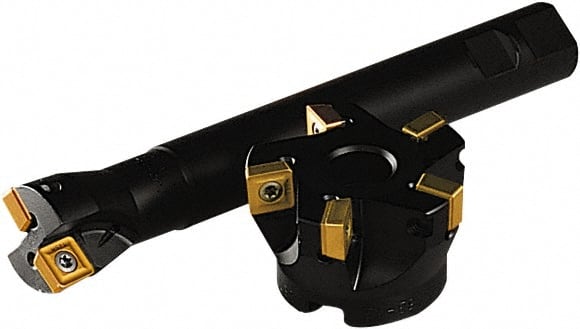

Seco - 3" Cut Diam, 1" Arbor Hole, 0.43" Max Depth of Cut, 87° Indexable Chamfer & Angle Face Mill - 6 Inserts, SC.. 1206 Insert, Right Hand Cut, 6 Flutes, Through Coolant, Series R220.79
Item #: 91634261
Brand: Seco
Model #: 07840
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 3.0000 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
| Lead Angle | 87 |
| Overall Height (Decimal Inch) | 2.0000 |
| Insert Compatibility | SC.. 1206 |
| Series | R220.79 |
| Through Coolant | Yes |
| Maximum Depth of Cut (Decimal Inch) | 0.4300 |
| Number of Cutter Inserts | 6 |
| Insert Holding Method | Screw |
| Number of Flutes | 6 |
| Cutting Rake Angle | 0 |
| Keyway Width (Decimal Inch) | 0.3800 |
| Maximum RPM | 7600 |
| Cutting Direction | Right Hand |
| Complete Insert Compatibility | SCET 120612T-M11; SCET 120612T-M14; SCET 120612T-MD15; SCET 120612T-ME10; SCET 120630T-M14; SCET 120630T-MD16; SCET 120631T-M11; SCET 120631T-ME10; SCEX 120660T-M14; SCMT 120612T-M14 |
