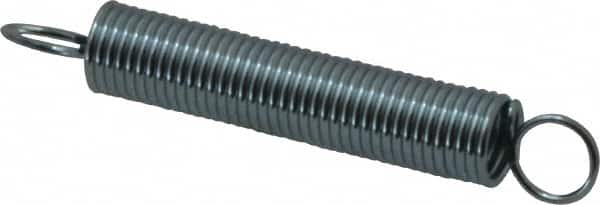

Gardner Spring - 1/4" OD, 3.35 Lb Max Load, 3.08" Max Ext Len, 0.0286" Wire Diam Spring - 2.01 Lb/In Rating
Item #: 91663104
Brand: Gardner Spring
Model #: E10C
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Outside Diameter (Decimal Inch) | 0.2500 |
| Overall Length (Inch) | 1-3/4 |
| Overall Length (Decimal Inch) | 1.7500 |
| Maximum Work Load (Pounds) | 3.3500 |
| Maximum Extended Length (Decimal Inch) | 3.0800 |
| Spring Rate Pounds per Inch (Pounds) | 2.0100 |
