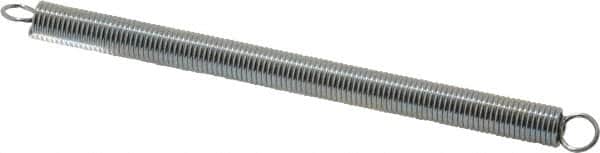

Gardner Spring - 0.38" OD, 9.42 Lb Max Load, 10.05" Max Ext Len, 0.0475" Wire Diam Spring - 1.78 Lb/In Rating
Item #: 91665026
Brand: Gardner Spring
Model #: V25C
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Outside Diameter (Decimal Inch) | 0.3800 |
| Overall Length (Inch) | 6 |
| Overall Length (Decimal Inch) | 6.0000 |
| Maximum Work Load (Pounds) | 9.4200 |
| Maximum Extended Length (Decimal Inch) | 10.0500 |
| Spring Rate Pounds per Inch (Pounds) | 1.7800 |
