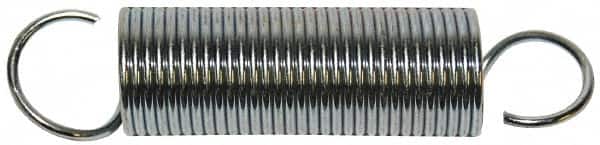

Gardner Spring - 3/32" OD, 1 Lb Max Load, 1.23" Max Ext Len, 0.012" Wire Diam Spring - 1.5 Lb/In Rating, 5/8" Free Length
Item #: 91665604
Brand: Gardner Spring
Model #: 37013G
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Outside Diameter (Decimal Inch) | 0.0940 |
| Outside Diameter (Inch) | 3/32 |
| Inside Hook Length | 0.625 |
| Overall Length (Inch) | 5/8 |
| Overall Length (Decimal Inch) | 0.6250 |
| Maximum Work Load (Pounds) | 1.0000 |
| Maximum Extended Length (Decimal Inch) | 1.2300 |
| Spring Rate Pounds per Inch (Pounds) | 1.5000 |
| Free Length (Decimal Inch) | 0.625 |
