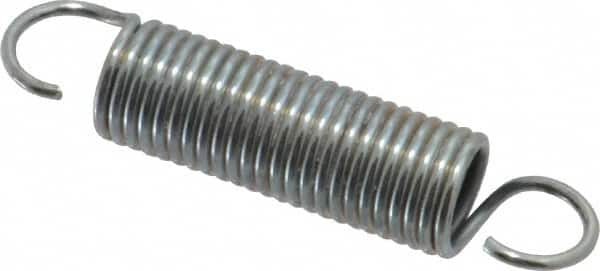

Gardner Spring - 3/8" OD, 10 Lb Max Load, 2.92" Max Ext Len, 0.045" Wire Diam Spring - 7.5 Lb/In Rating, 1-3/4" Free Length
Item #: 91666024
Brand: Gardner Spring
Model #: 37055G
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Outside Diameter (Decimal Inch) | 0.3750 |
| Outside Diameter (Inch) | 3/8 |
| Inside Hook Length | 1.750 |
| Overall Length (Inch) | 1-3/4 |
| Overall Length (Decimal Inch) | 1.7500 |
| Maximum Work Load (Pounds) | 10.0000 |
| Maximum Extended Length (Decimal Inch) | 2.9200 |
| Spring Rate Pounds per Inch (Pounds) | 7.5000 |
| Free Length (Decimal Inch) | 1.750 |
