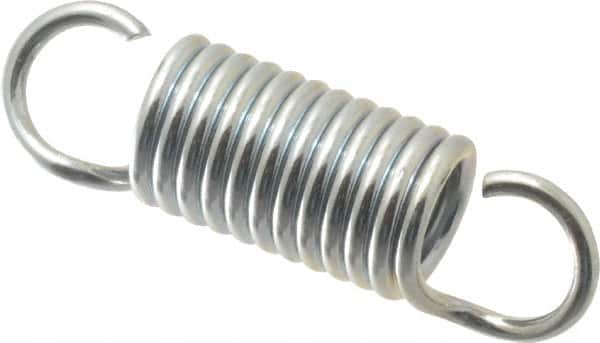

Gardner Spring - 3/8" OD, 17.5 Lb Max Load, 1.7" Max Ext Len, 0.055" Wire Diam Spring - 34.8 Lb/In Rating, 1-1/4" Free Length
Item #: 91666040
Brand: Gardner Spring
Model #: 37057G
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Outside Diameter (Decimal Inch) | 0.3750 |
| Outside Diameter (Inch) | 3/8 |
| Inside Hook Length | 1.250 |
| Overall Length (Inch) | 1-1/4 |
| Overall Length (Decimal Inch) | 1.2500 |
| Maximum Work Load (Pounds) | 17.5000 |
| Maximum Extended Length (Decimal Inch) | 1.7000 |
| Spring Rate Pounds per Inch (Pounds) | 34.8000 |
| Free Length (Decimal Inch) | 1.250 |
