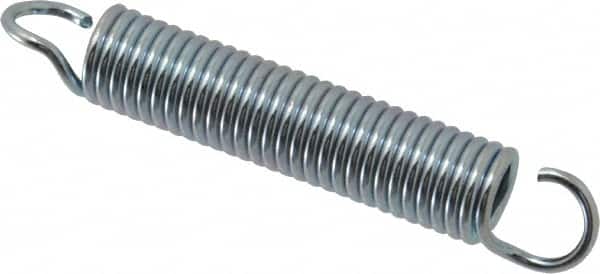

Gardner Spring - 3/8" OD, 17.5 Lb Max Load, 3.37" Max Ext Len, 0.055" Wire Diam Spring - 13.9 Lb/In Rating, 2-1/4" Free Length
Item #: 91666057
Brand: Gardner Spring
Model #: 37058G
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Outside Diameter (Decimal Inch) | 0.3750 |
| Outside Diameter (Inch) | 3/8 |
| Inside Hook Length | 2.250 |
| Overall Length (Inch) | 2-1/4 |
| Overall Length (Decimal Inch) | 2.2500 |
| Maximum Work Load (Pounds) | 17.5000 |
| Maximum Extended Length (Decimal Inch) | 3.3700 |
| Spring Rate Pounds per Inch (Pounds) | 13.9000 |
| Free Length (Decimal Inch) | 2.250 |
