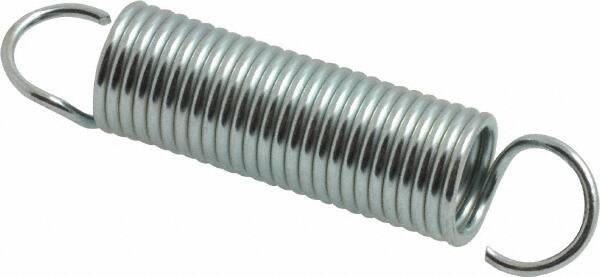

Gardner Spring - 1/2" OD, 13.2 Lb Max Load, 4.2" Max Ext Len, 0.055" Wire Diam Spring - 6.1 Lb/In Rating, 2-1/4" Free Length
Item #: 91666172
Brand: Gardner Spring
Model #: 37070G
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Outside Diameter (Decimal Inch) | 0.5000 |
| Outside Diameter (Inch) | 1/2 |
| Inside Hook Length | 2.250 |
| Overall Length (Inch) | 2-1/4 |
| Overall Length (Decimal Inch) | 2.2500 |
| Maximum Work Load (Pounds) | 13.2000 |
| Maximum Extended Length (Decimal Inch) | 4.2000 |
| Spring Rate Pounds per Inch (Pounds) | 6.1000 |
| Free Length (Decimal Inch) | 2.250 |
