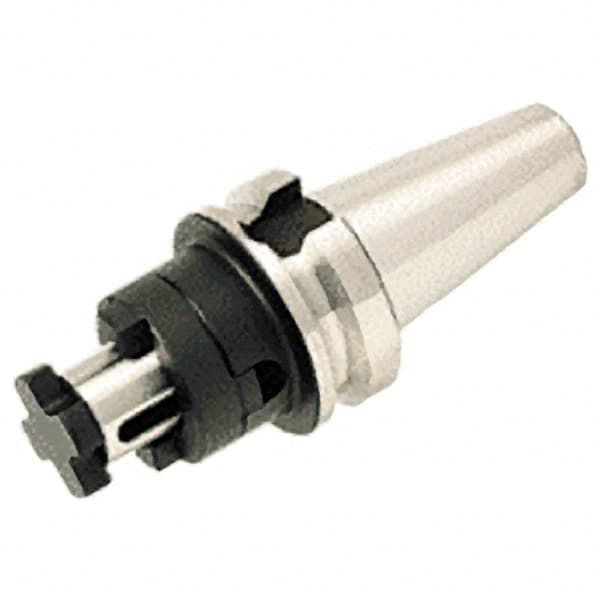

Iscar - BT40 Taper Shank 16mm Pilot Diam Shell Mill Holder - 100mm Flange to Nose End Projection, 32mm Nose Diam, Through-Spindle Coolant
Item #: 91689315
Brand: Iscar
Model #: 4532002
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Shank Type | Taper Shank |
| Taper Size | BT40 |
| Pilot Diameter (mm) | 16.00 |
| Pilot Diameter (Decimal Inch) | 0.6299 |
| Projection Flange to Nose End (mm) | 100.00 |
| Projection Flange to Nose End (Decimal Inch) | 3.9370 |
| Through Coolant | Yes |
| Nose Diameter (mm) | 32.00 |
| Nose Diameter (Decimal Inch) | 1.2598 |
| TIR (Decimal Inch) | 0.0002 |
| Coolant Type | Through-Spindle |
